stroke
Defines how to draw a line.
A stroke has a paint (a solid color or gradient), a thickness, a line cap, a line join, a miter limit, and a dash pattern. All of these values are optional and have sensible defaults.

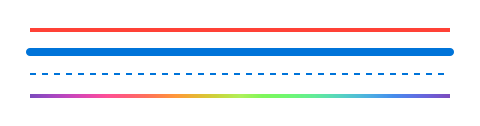

Example
#set line(length: 100%)
#stack(
spacing: 1em,
line(stroke: 2pt + red),
line(stroke: (paint: blue, thickness: 4pt, cap: "round")),
line(stroke: (paint: blue, thickness: 1pt, dash: "dashed")),
line(stroke: 2pt + gradient.linear(..color.map.rainbow)),
)
Simple strokes
You can create a simple solid stroke from a color, a thickness, or a combination of the two. Specifically, wherever a stroke is expected you can pass any of the following values:
- A length specifying the stroke's thickness. The color is inherited, defaulting to black.
- A color to use for the stroke. The thickness is inherited, defaulting to
1pt. - A stroke combined from color and thickness using the
+operator as in2pt + red.
For full control, you can also provide a dictionary or a stroke object
to any function that expects a stroke. The dictionary's keys may include any
of the parameters for the constructor function, shown below.
Fields
On a stroke object, you can access any of the fields listed in the
constructor function. For example, (2pt + blue).thickness is 2pt.
Meanwhile, stroke(red).cap is auto because it's unspecified. Fields
set to auto are inherited.
ConstructorParameterParameters are input values for functions. Specify them in parentheses after the function name.
Converts a value to a stroke or constructs a stroke with the given parameters.
Note that in most cases you do not need to convert values to strokes in order to use them, as they will be converted automatically. However, this constructor can be useful to ensure a value has all the fields of a stroke.
#let my-func(x) = {
x = stroke(x) // Convert to a stroke
[Stroke has thickness #x.thickness.]
}
#my-func(3pt) \
#my-func(red) \
#my-func(stroke(cap: "round", thickness: 1pt))
stroke(,,,,,)->The color or gradient to use for the stroke.
If set to auto, the value is inherited, defaulting to black.
The stroke's thickness.
If set to auto, the value is inherited, defaulting to 1pt.
How the ends of the stroke are rendered.
If set to auto, the value is inherited, defaulting to "butt".
Available string values
buttSquare stroke cap with the edge at the stroke's end point.
roundCircular stroke cap centered at the stroke's end point.
squareSquare stroke cap centered at the stroke's end point.
How sharp turns are rendered.
If set to auto, the value is inherited, defaulting to "miter".
Available string values
miterSegments are joined with sharp edges. Sharp bends exceeding the miter limit are bevelled instead.
roundSegments are joined with circular corners.
bevelSegments are joined with a bevel (a straight edge connecting the butts of the joined segments).
dashRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
dashThe dash pattern to use. This can be:
- One of the predefined patterns:
"solid"ornone"dotted""densely-dotted""loosely-dotted""dashed""densely-dashed""loosely-dashed""dash-dotted""densely-dash-dotted""loosely-dash-dotted"
- An array with alternating lengths for dashes and gaps. You can
also use the string
"dot"for a length equal to the line thickness. - A dictionary with the keys
array(same as the array above), andphase(of type length), which defines where in the pattern to start drawing.
If set to auto, the value is inherited, defaulting to none.

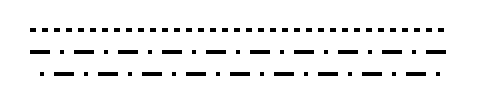

Show example
#set line(length: 100%, stroke: 2pt)
#stack(
spacing: 1em,
line(stroke: (dash: "dashed")),
line(stroke: (dash: (10pt, 5pt, "dot", 5pt))),
line(stroke: (dash: (array: (10pt, 5pt, "dot", 5pt), phase: 10pt))),
)
Available string values
soliddotteddensely-dottedloosely-dotteddasheddensely-dashedloosely-dasheddash-dotteddensely-dash-dottedloosely-dash-dotted
Number at which protruding sharp bends are rendered with a bevel
instead or a miter join. The higher the number, the sharper an angle
can be before it is bevelled. Only applicable if join is
"miter".
Specifically, the miter limit is the maximum ratio between the corner's protrusion length and the stroke's thickness.
If set to auto, the value is inherited, defaulting to 4.0.

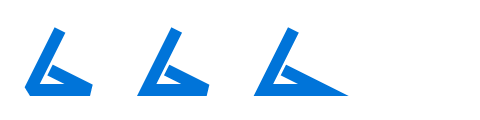

Show example
#let items = (
curve.move((15pt, 0pt)),
curve.line((0pt, 30pt)),
curve.line((30pt, 30pt)),
curve.line((10pt, 20pt)),
)
#set curve(stroke: 6pt + blue)
#stack(
dir: ltr,
spacing: 1cm,
curve(stroke: (miter-limit: 1), ..items),
curve(stroke: (miter-limit: 4), ..items),
curve(stroke: (miter-limit: 5), ..items),
)
